Five sets YDX-200 Core Drilling Rigs Exported To Abroad

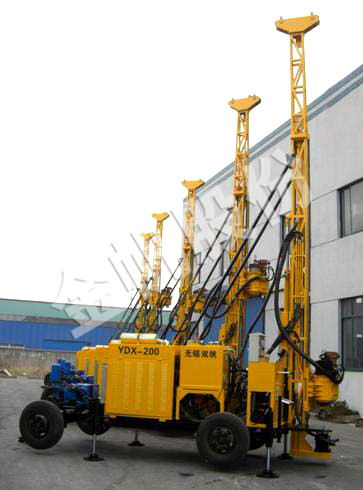

  On 26th-12-08, five YDX-200 Drilling Rigs stand in a row in Wuxi Jinfan Drilling Equipment Ltd.,Company and made all the things ready for their journey t0o India and Armenia.
This type drilling rig was developed and produced by our company .The rig suitable for multi-complex layer condition and it has widely range of rotary, great drilling capability. Its main hydraulic components adopted world-famous brand goods to provide stable performance, simple operated and long life usage.
  Though economic crisis affects all over the world caused most trade businesses being in hot water. This export let us confirmedly believe that our international trade will have a bright future.Meanwhile,we will support more and more good quality drilling rigs to Africa、European、Middle East、South America、North America and Oceania. We will try our best to make a contribution to the global economic recovery.

  YDX-200Core Drilling Rig’s Specification
1. Working range
(A)Drilling depth with rod diameter NQ                  200m
(B) Drilling depth with rod diameter BQ                  300m
2. Power head
1. Rotational torque and rotational speed (diesel power)
ⅰRotational torque/rotational speed             1050RPM/215Nm
ⅱRotational torque/rotational speed              585RPM/380Nm
ⅲ Rotational torque/rotational speed              270RPM/810Nm
ⅳ Rotational torque/rotational speed             145RPM/1500Nm
2. Feed stroke                              1800mm or 3500mm
3. Thrust Force ……………………………………………………30kN
4. Lifting Capability ..................................................................... 50 kN
3. Hydraulic winch
 Main winch Hoisting capacity                     32 KN
 Wire line winch Hoisting capacity                  12 KN
4. Mast height (from crown to ground level)…..8.5m (3500mm Feeding Stroke)
5. Power
Diesel Engine …………………………………... 70kw / 2200rpm
Electromotor ………………………………..…  22kw / 1500rpm
6. Total weight of the machine
Total weight of YDX-200L (Crawler Mounted) .…  About 4000 kg
Total weight of YDX-200T (Trailer Mounted) .... … About 3000 kg
7. Mud pump (Optional) ………………………………..… BW-150
8. Chassis of Drilling Rig: Skid / Trailer / Crawler Mounted
(According to customer’s requests)
