HGD—200 Drilling Rig
  • Product images
  • Product description


  • Drilling Construction with Pipe Following in Deep Accumulation Strata of Shanxi Province

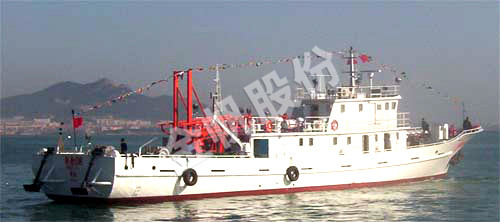

  • Introduction The HGD-200 marine engineering geological survey drilling rig is a long stroke power head type drilling rig. The power head rotation adopts frequency conversion speed regulation technology, equipped with an 8-meter drilling tower and a lifting and sinking balance mechanism. It can drill in waves below level 5 at a depth of 100 meters, and can also be used for water geological survey construction and pile foundation engineering construction in rivers and lakes. The main unit can also be used as a land foundation engineering construction drilling rig.

    Main features ● The drilling rig power head adopts variable frequency speed regulation, and the mechanical power head provides a long progress, compact structure, reasonable layout, and wide speed regulation range, which can meet the needs of drilling in various complex formations.
    ● Set up a safe and reliable power head anti fall mechanism to ensure the safety of equipment and personnel.
    ● The drilling rig is equipped with a fine-tuning drilling mechanism, ensuring the safety of equipment and personnel.
    ● Equipped with a hydraulic pipe twisting machine, it realizes the mechanization of twisting and unloading drill rods, reduces labor intensity, and improves drilling efficiency.
    ● The power head of the drilling rig is moved back as a whole, making way for the opening of the hole. The operating space at the opening of the hole is large, making it convenient for drilling operations.
    ● The matching bottom hole sampling equipment can meet the needs of taking rock samples from various complex formations.

    Technical Parameter
    drill depth 200-80m
    Borehole diameter ￠75-220mm
    drill pipe diameter ￠50、￠114 wire line coring
    Power head speed Low speed (forward and reverse) 7-233r/min High speed (forward and reverse) 16-540r/min
    Provide progress for power head 2500mm
    Electric power of the power head 22KW
    Main winch Single rope lifting capacity 30kN
    Pay for the winch Single rope lifting capacity 20Kn
    Drilling tower height 8m
    Drilling tower load 180Kn
    Mud circulation pump BW-250
    through-hole diameter ￠450mm
    Unscrew the diameter of the drill pipe or casing ￠50，￠114， ￠127，￠l78mm c、Shackle torque 2.2kN.m
    Outline dimensions for host installation Length×Width×Height 2800×1500×4800mm
    Drill weight 6000kg
