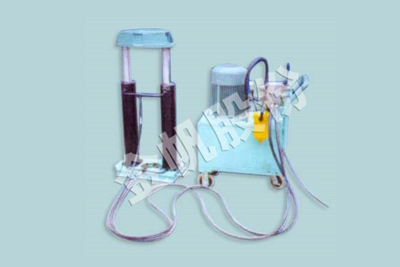

• Overview The YB series hydraulic pipe pulling machine is an auxiliary equipment for rock and soil anchoring engineering and pipe drilling construction, used for pulling out borehole wall protection casing and drill rods. This machine is mainly composed of a hydraulic pump station, a pipe pulling oil cylinder, a base, a crossbeam, and slips. It has the characteristics of light weight, good disassembly, and easy relocation, and is particularly suitable for construction sites such as slopes, tunnels, and mountainous areas.

  Technical Parameter

  1、Pulling force	30 ton	50 ton	70 ton
  2、Cylinder stroke	500mm	500mm	500mm
  3、System rated pressure	20Mpa	20Mpa	20Mpa
  4、Electricity Motivation Power	5.5kw	5.5kw	5.5kw
  5、Overall weight	250kg	280kg	300kg
  6、Can be equipped with slip specifications	￠73、￠89、￠108、￠127、￠146、￠168、￠178、￠194
